3200mAh Li Polymer Battery Pack

LP-575095 -3.7V- 3200mAh

Introduction

Battery model: LP-575095 -3.7V- 3200mAh
Battery specification: 575095 / 3.7V / 3200mAh
Nominal voltage: 3.7V
Nominal capacity: 3200mAh
Charging voltage: 4.2V
Termination voltage: 2.8V
Battery weight: 56.5g
Charging temperature: 10~45℃
Discharge temperature: -20~60℃
Storage temperature: -20~45℃
Lithium-ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, temperature protection, etc.
Application field: Lithium battery for wireless testing equipment.

Battery electrical performances:

No	Items	Test procedure	Requirements
1	Nominal voltage	The average value of the working voltage during the whole discharge process.	7.6V
2	Discharge performance	The discharge capacity of the battery, measured with 0.2 C5A down to 5.6V within 1 hour after a standard charge at 25±5℃	Discharge ≥Minimum capacity
3	Capacity retention	After 28 days storage at 25±5℃, after having been standard charged and discharged at 0.2 C5A to 5.6V (the residual capacity is above 85% of nominal capacity)	Discharge time≥4.25h
4	Cycle life	Charging/discharging in the below condition: Charge: standard charge at 25±5℃ Discharge: 0.2C5A to 5.6V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC	>300cycles
5	Storage	(Within 3 months after manufactured) The battery is charged with 0.2C5A to 40-50% capacity and stored at ambient temperature 25±5℃, 65±20%RH for 12 months. After the 12 months storage period the cell is fully charged and discharged to 5.6V with 0.2 C5A	Discharge time≥4h

PCB electrical characteristics:

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	4.475±0.025V
	Detection delay time	1.0±0.2S
	Over charge release voltage	4.275±0.050V
Over discharge protection	Over discharge detection voltage	2.600±0.050V
	Detection delay time	128±26mS
	Over discharge release voltage	2.900±0.100V
	Rated operational current	≤2.0A
Over current protection	Over current detection current	5±1.5A
	Release condition	Cut load
	Detection delay time	12±4mS
Short protection	Detection condition	Exterior short circuit
Short protection	Release condition	Cut short circuit
Interior resistance	Main loop electrify resistance	≤45mΩ
Current consumption	Current consume in normal operation	≤8μA
NTC	NTC:/	/
PCB Dimension(LWH)mm	6581.0mm

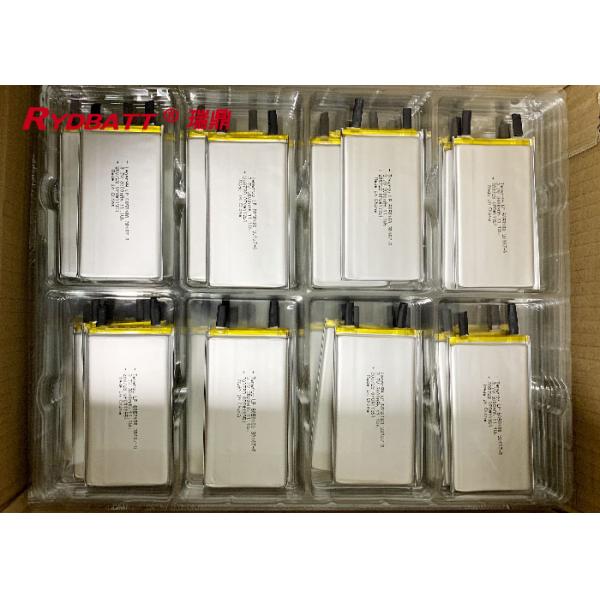

Product photo:

Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.

Factory photo:

Contact with our sales team for your OEM and ODM order.

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet
