Home > Li Polymer Battery Pack >

Used by equipment with RS485 communication LP-06160230-51.1V 57.0Ah Polymer Lithium Battery

Product Categories

Shenzhen Ryder Electronics Co., Ltd.

Contact Now

Used by equipment with RS485 communication LP-06160230-51.1V 57.0Ah Polymer Lithium Battery

Ask Lasest Price
Brand Name :	RYDBATT
Model Number :	LP-06160230-51.1V 57.0Ah (2.9127kWh)-PCM
Certification :	CE/ROSH/UL/MSDS/UN38.3
Price :	Negotiated The Price
Payment Terms :	D/P, T/T,
Supply Ability :	800PCS /Day
Delivery Time :	30-45 work days

Add to Cart

Product Details
Company Profile

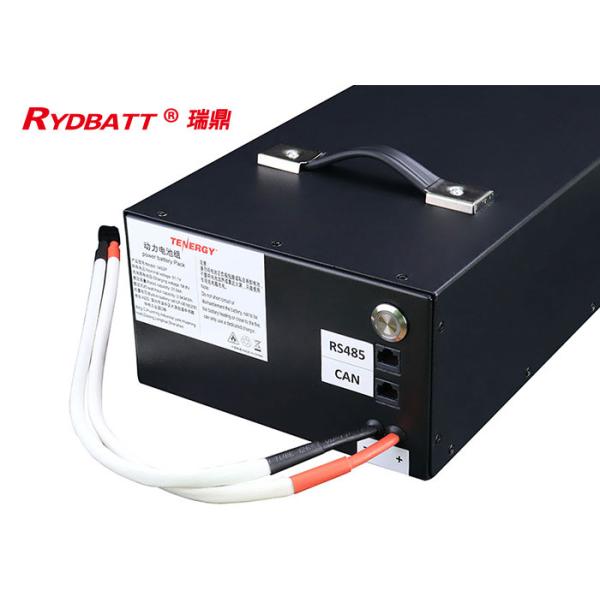

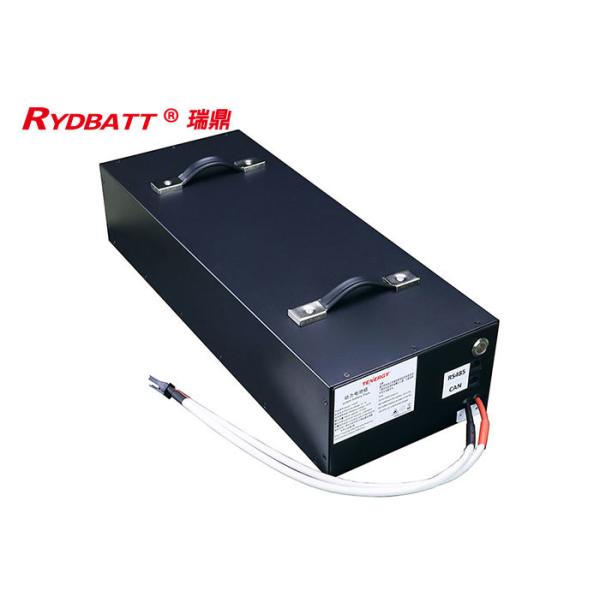

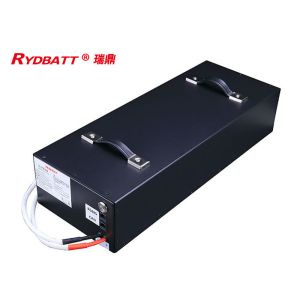

Used by equipment with RS485 communication LP-06160230-51.1V 57.0Ah Polymer Lithium Battery

Product Description:

* Metal shell, durable (appearance can be customized)
* Accurate electricity display. (can be selected )
* Enclosure ip-x5 waterproof.
* RS485 communication
* The production environment conforms to international standards.

About company:

* Ryder has 15 years experience of battery packs. Our customers are from all over the world.
* Develop products according to customer requirements or product orientation.
* The automated battery assembly line can process 7K-10K cells every day to guarantee fast delivery for the orders.
* Offer 200 test points for the battery within 60V 10A and 32 test points for the battery within 100V 20A.
* SAP & MES dual system to coordinate daily production.

Battery rated performance

No	Item	Rated performance	Remark
1	Rated capacity	Nominal 57000mAh (2.9127kWh) Min 57000-5%mAh	Standard discharge after standard charge
2	Nominal voltage	51.1V	Mean operation voltage during standard discharge after standard charge
3	Voltage at end of discharge	39.2V	Discharge cut-off voltage
4	Charging voltage	58.1V
5	Shipments voltage		SOC≤30%
6	Impedance	≤110 mΩ
7	Standard charge	Constant current 0.2 C5A Constant voltage 58.1V Cut-off current ≤0.02C5A	Under the condition of the ambient temperature of 25±2℃
8	Standard discharge	Constant current 0.2 C5A End voltage39.2V
9	Maximum Charge Current	Constant current ≤30A Constant voltage 58.1V Cut-off current ≤0.02C5A
10	Maximum discharge Current	Constant current 0.5 C5A End voltage 39.2V
11	Maximum continuous charge current	≤30A
12	Operation temperature range	Charge: 0~45℃ 0-5℃≤0.2C 5-10℃≤0.33C 10-15℃≤0.5C 15-45℃≤30A	60±25%R.H
12	Operation temperature range	Discharge: -30~55℃	60±25%R.H
13	Cycle life	>2000cycles	Charging/discharging in the below condition: Charge: standard charge Discharge: 0.2 C5A to 39.2V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC
14	Storage temperature	≤1 month: -20 ~ 45℃	60±25%R.H, Best 10~25℃ for long-time storage

15	Weight	Approx: ≈21.8kg
16	Dimension(mm)	ThicknessWidthHeight(Max)	550208130mm
17	output wire length(mm)	Excluding the connector	450±10mm

Battery electrical performances

No	Items	Test procedure	Requirements
1	Nominal voltage	The average value of the working voltage during the whole discharge process.	51.1V
2	Discharge performance	The discharge capacity of the battery, measured with 0.2 C5A down to 39.2V within 1 hour after a standard charge at 25±5℃	Discharge ≥Minimum capacity
3	Capacity retention	After 28 days storage at 25±5℃, after having been standard charged and discharged at 0.2 C5A to 39.2V (the residual capacity is above 85% of nominal capacity)	Discharge time≥4.25h
4	Cycle life	Charging/discharging in the below condition: Charge: standard charge at 25±5℃ Discharge: 0.2C5A to 39.2V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC	>2000cycles
5	Storage	(Within 3 months after manufactured) The battery is charged with 0.2C5A to 40-50% capacity and stored at ambient temperature 25±5℃, 65±20%RH for 12 months. After the 12 months storage period the cell is fully charged and discharged to 39.2V with 0.2 C5A	Discharge time≥4h

Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.

Factory photo:

Contact with our sales team for your OEM and ODM order.

OEM/ODM Service:
If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet

Ryder Electronics established in Shenzhen on July 18, 2005, mainly in the business of battery packs. In 2009 the company passed ISO9001 and improved the product quality standard to fulfill the high-end requirements from our customers.

In 2012, Ryder Electronics moved to a new facility and expend the production capacity, the Productivity improved nearly 10 times than before.

In 2013, Ryder Electronics imported ERP (SAP) system to supervise order execution process.

In 2017, Ryder Electronics expanded the SMT, imported high-speed patch machine from Germany.

Until now the factory grows into a modern enterprise which integrated injection molding, PCB designing, SMT and battery pack assembling services.

In 2018 the company passed ISO14001certification, introduced automated battery production line to further improve the production quality and capacity.

Used by equipment with RS485 communication LP-06160230-51.1V 57.0Ah Polymer Lithium Battery
