4S2P Li Polymer Battery Pack / Medical Device 14.8V 20Ah 2 Cell
Lithium Polymer
Specification Approval Sheet
Name: Li-ion Polymer Battery
Model: /
SPEC: LP-7872196-4S2P-14.8V20Ah-PCM
File Number: 8169070402001
Project: /
| Approved By | Checkup | Make |
| ShaoPeng Yi | / | Andy |
| 2016-06-02 | / | 2016-06-02 |
Customer Confirmation | Signature | Date |
| |
| Company Name: |
| Stamp: |
Amendment Records
This document describes the performance characteristics and testing
methods for Li-ion polymer battery produced by Tenergy Corporation.
- Product type and model number
2.1 Product type
Li-ion polymer Battery
2.2 Model number
Form 1: Battery rated performance
| No | Item | Rated performance | Remark |
| 1 | Rated capacity | Nominal 20Ah Min 20Ah-5% | Standard discharge after standard charge |
| 2 | Nominal voltage | 14.8V | Mean operation voltage during standard discharge after standard charge |
| 3 | Voltage at end of discharge | 11V | Discharge cut-off voltage |
| 4 | Charging voltage | 16.8V | |
| 5 | Impedance | ≤80mΩ | |
| 6 | Standard charge | Constant current 0.2 C5A Constant voltage 16.8V Cut-off current ≤0.02C5A | |
| 7 | Standard discharge | Constant current 0.2 C5A End voltage 11V | |
| 8 | Fast charge | Constant current 5.0A Constant voltage 16.8V Cut-off current ≤0.02C5A | |
| 9 | Fast discharge | Constant current 5.0A End voltage 11V | |
| 10 | Maximum continuous discharge current | ≤5A | |
| 11 | Maximum discharge current | ≤7.5A | |
| 12 | Operation temperature range | Charge: 0~40℃ | 60±25%R.H |
| Discharge: -20~60℃ |
| 13 | Cycle life | >300cycles | Charging/discharging in the below condition: Charge: standard charge Discharge: 0.2 C5A to 11V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC |
| 14 | Storage temperature | ≤1 month: -20 ~ 45℃ | 60±25%R.H, Best 10~25℃ for long-time storage |
| ≤3 months: -10 ~ 25℃ |
| ≤1 year: 0 ~ 30℃ |
| 15 | Weight | Approx: ≈2380g | |
| 16 | Dimension(mm) | Thickness*Width*Height(Max) | 230*228*44.5mm |
Form 2: Battery electrical performances
| No | Items | Test procedure | Requirements |
| 1 | Nominal voltage | The average value of the working voltage during the whole discharge
process. | 14.8V |
| 2 | Discharge performance | The discharge capacity of the battery, measured with 0.2 C5A down
to 11V within 1 hour after a standard charge at 25±5℃ | Discharge ≥Minimum capacity |
| 3 | Capacity retention | After 28 days storage at 25±5℃, after having been standard charged
and discharged at 0.2 C5A to 11V (the residual capacity is above
85% of nominal capacity) | Discharge time≥4.25h |
| 4 | Cycle life | Charging/discharging in the below condition: Charge: standard charge at 25±5℃ Discharge: 0.2C5A to 11V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC | >300cycles |
| 5 | Storage | (Within 3 months after manufactured) The battery is charged with
0.2C5A to 40-50% capacity and stored at ambient temperature 25±5℃,
65±20%RH for 12 months. After the 12 months storage period the cell is fully charged and discharged to 11V with 0.2 C5A | Discharge time≥4h |

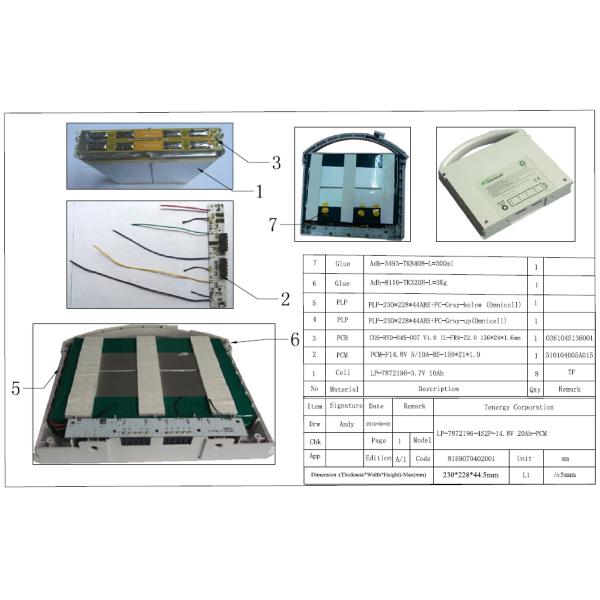

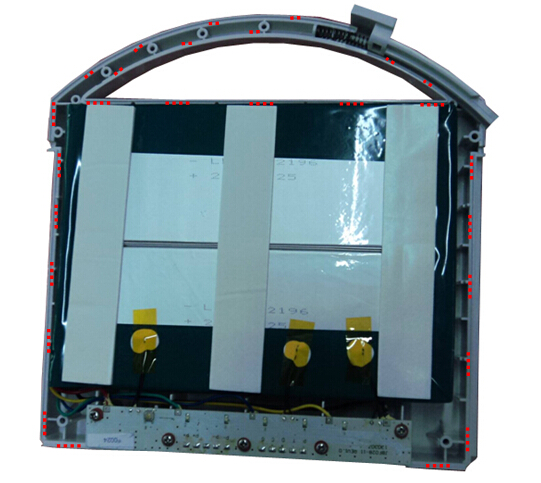

Product size and structure:
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
Factory photo:
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand logo in products, bags,
labels or anywhere. Or you need to develop battery packs according
to your product orientation. Our OEM and ODM services are ready to
do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
